SCC400T Series Combined Gyro Sensor and Accelerometer for Industrial Application | Gyro Sensors

SCC400T sensor family offers more flexibility for advanced customers with design options for redundancy and built-in adjustable dual output channels

±300°/s X- or X/Z-axis angular rate measurement range
±6g 3-axis acceleration measurement range
±8g 3-axis acceleration measurement range (parallel output)
−40°C...+110°C operating temperature range
3.0V...3.6V supply voltage
SPI digital interface
Extensive self-diagnostics features
Housing body size 10.4 × 7.65 × 2.3 mm (l × w × h)

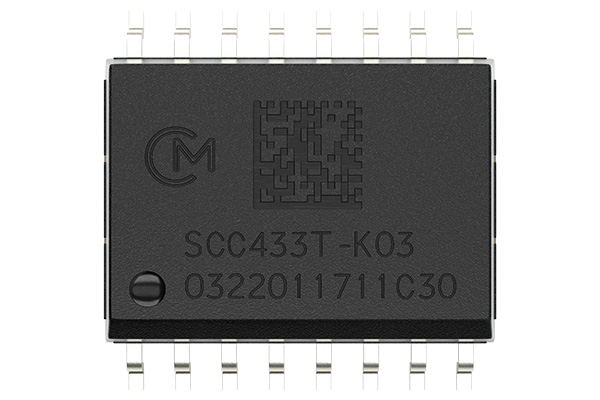

RoHS compliant robust SOIC plastic package suitable for lead free soldering process and SMD mounting
Proven capacitive 3D-MEMS technology

Benefits

New architecture enabling low noise for gyro and accelerometer
Excellent linearity and offset stability over temperature
Small package footprint
SCC400T series enables implementation of a 6DOF sensor solution on one application PCB with 5DOF and 1DOF sensors

SCC400T series is targeted at applications demanding high stability with tough environmental requirements.

Typical applications include:

Evaluation BoardSCR410T-K03
Gyro SensorsProduct Lineup

Gyroscope

Part Number	Axis	Maximum Range	Amplitude Response, -3dB frequency	Sensitivity	Operating temperature	Output Type
SCC433T-K03	XZ	±300°/s	13, 20, 46 200 or 300Hz	80 LSB/°/s	-40 °C ... +110 °C	Digital/SPI
SCR410T-K03	X	±300°/s	13, 20, 46 200 or 300Hz	80 LSB/°/s	-40 °C ... +110 °C	Digital/SPI

Accelerometer

Part Number	Axis	Maximum Range	Amplitude Response, -3dB frequency	Sensitivity	Operating temperature	Output Type
SCC433T-K03	XYZ	±6g	13, 20, 46 200 or 300Hz	4905 LSB/g	-40 °C ... +110 °C	Digital/SPI
SCC433T-K03	XYZ	±8g	200 or 300Hz	2452.5 LSB/g	-40 °C ... +110 °C	Digital/SPI

Flyer

Flyer for SCC400T series (PDF: 332KB)
