时钟元件 (晶体谐振器/陶瓷谐振器)按应用分类产品使用案例（汽车用）

下面将从村田种类丰富的时钟元件产品阵容中，为您介绍非常适合多种应用的产品。

按功能分类的应用一览

以下是使用时钟元件产品的应用。
您可以按照功能分类查看村田推荐的产品。
点击系列名称，即可浏览该系列的特征和规格详情。

ADAS (Camera)
ADAS (Radar)
TPMS
Remote Keyless Entry (RKE)
Ethernet^®
Wireless Charger
NFC (Key)
Instrument Cluster (General)
Instrument Cluster (Digital)
Parking Assist System
Surround View Camera System
Drive Recorder
EV/HEV

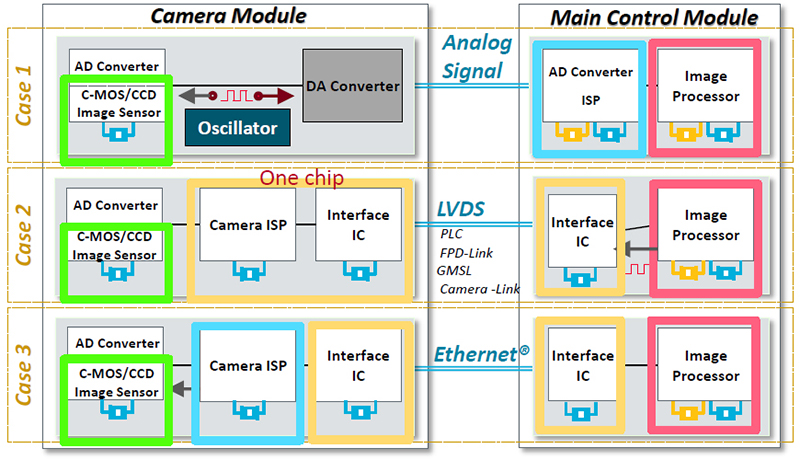

ADAS (Camera)

Image sensor
Camera ISP
Interface IC
Image processor IC

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)	Image Processor	Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	XRCGB24M000F3A00R0 XRCGB27M000F3A00R0	Image sensor Camera ISP Image processor	Frequency Tolerance : +/-85ppm, +/-135ppm
		XRCGB25M000F3A00R0	Interface IC Image processor
		XRCGB30M000F5A00R0	Image sensor Camera ISP

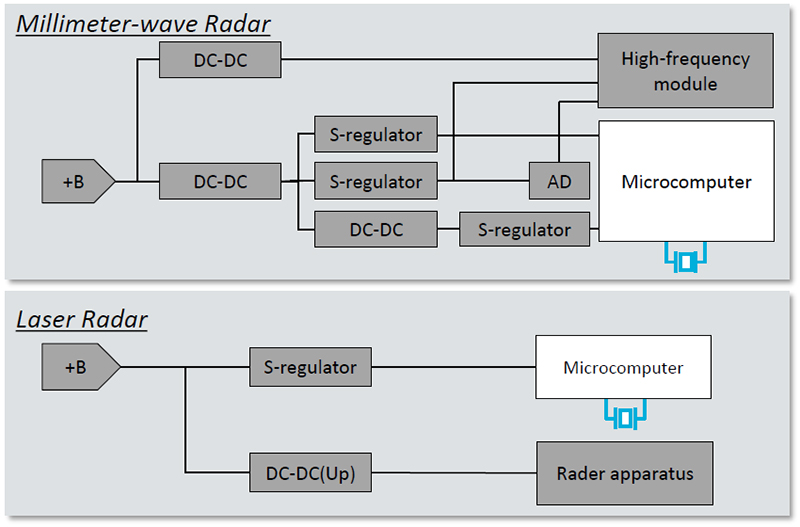

ADAS (Radar)

Appearance	Device	Series P/N		SPEC
	Crystal Unit	Representative P/N XRCGB30M000F5A00R0 (for MCU) XRCGB40M000F5A00R0 (for MCU)		Frequency Tolerance : +/-135ppm

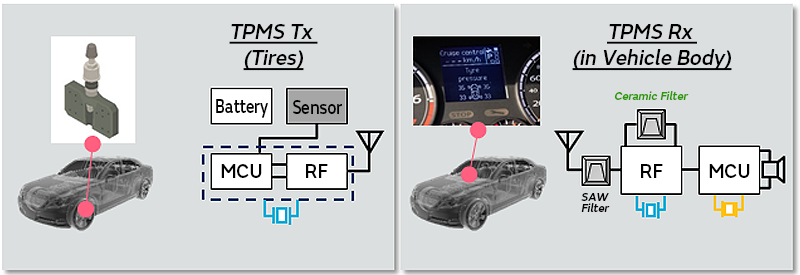

TPMS

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/−2700ppm (C series) +/−2300ppm (T series)
	Crystal Unit	Representative P/N XRCGB26M000F3A00R0 (for TPMS_Tx/Rx) XRCGE32M000MXF1AR0 (for BLE) XRCGE48M000MXF1AR0 (for BLE)		Frequency Tolerance : +/−85ppm +/−40ppm (−40 to 125°C)

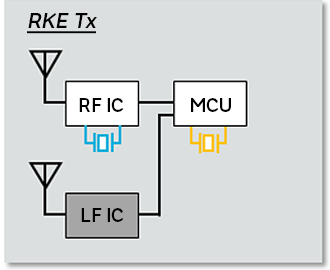

Remote Keyless Entry (RKE)

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	Representative P/N XRCGB27M600F2C00R0 (for RF control) XRCGE32M000MXF1AR0 (for BLE) XRCGE48M000MXF1AR0 (for BLE)		Frequency Tolerance : +/−60ppm (−30 to 85°C) +/−40ppm (−40 to 125°C)

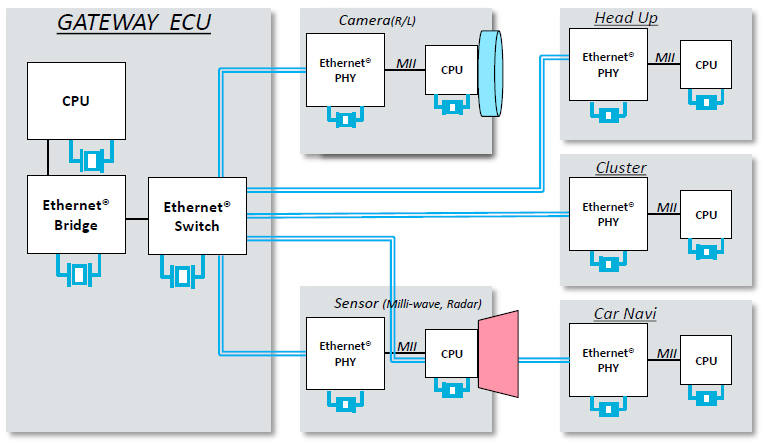

Ethernet^®

Appearance	Device	Series P/N		SPEC
	Crystal Unit	XRCGB25M000F3A00R0 (for Ethernet^® PHY) XRCGB-F-A series (24MHz to 48MHz, for CPU) XRCGE25M000FXA1AR0 (for RMII/RGMII) XRCGE50M000MXF1AR0 (for Multigig)		Frequency Tolerance : +/−85ppm, +/−50ppm

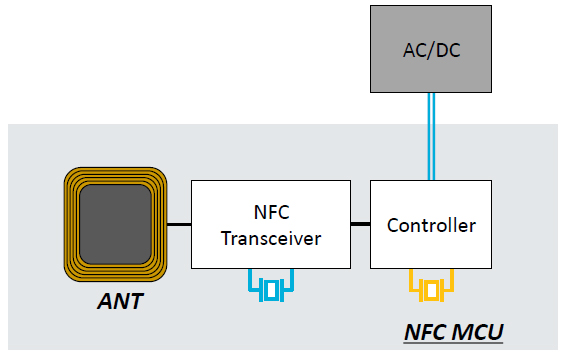

Wireless Charger

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNE8M00G55A000R0		Frequency Tolerance : +/-8000ppm
	Crystal Unit	Representative P/N XRCGB27M120F3A00R0 (for NFC Transceiver)		Frequency Tolerance : +/-85ppm

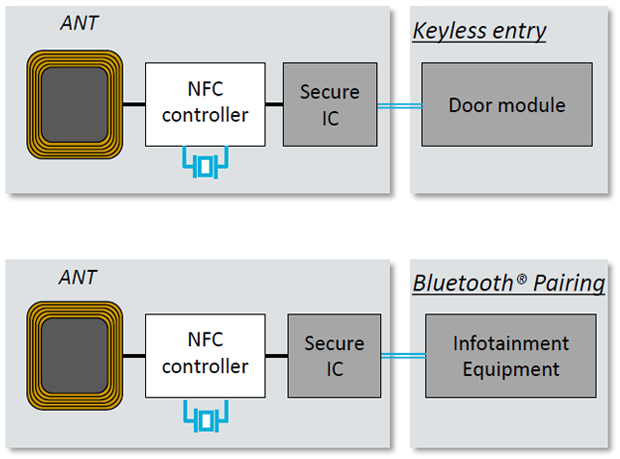

NFC (Key)

Appearance	Device	Series P/N		SPEC
	Crystal Unit	XRCGB27M120F3A00R0		Frequency Tolerance : +/-85ppm

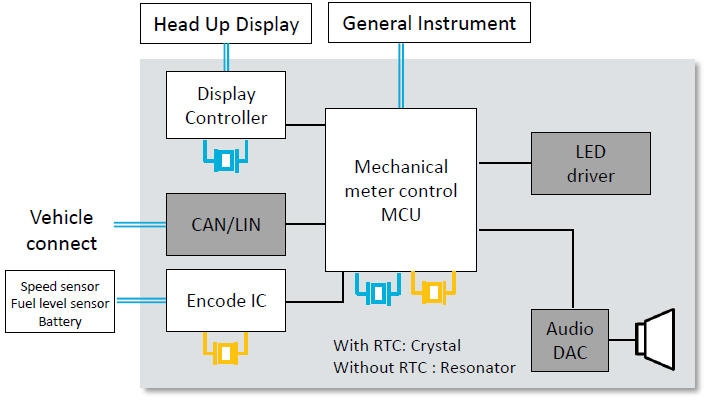

Instrument Cluster (General)

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	XRCGB-F-A series (24MHz to 48MHz)		Frequency Tolerance : +/-85ppm, +/-135ppm

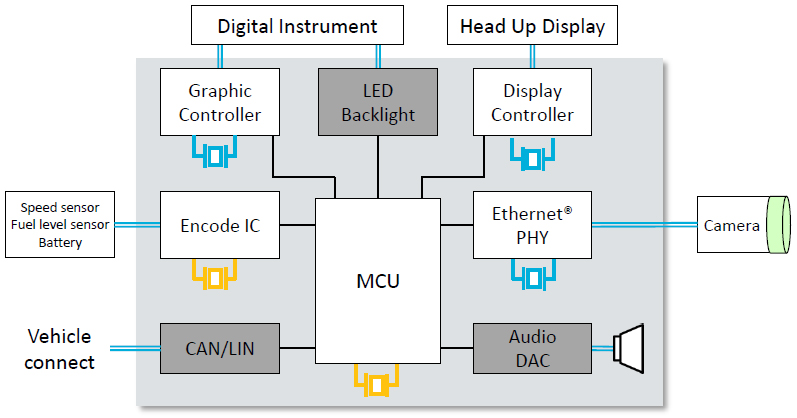

Instrument Cluster (Digital)

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	XRCGB-F-A series (24MHz to 48MHz)		Frequency Tolerance : +/-85ppm, +/-135ppm

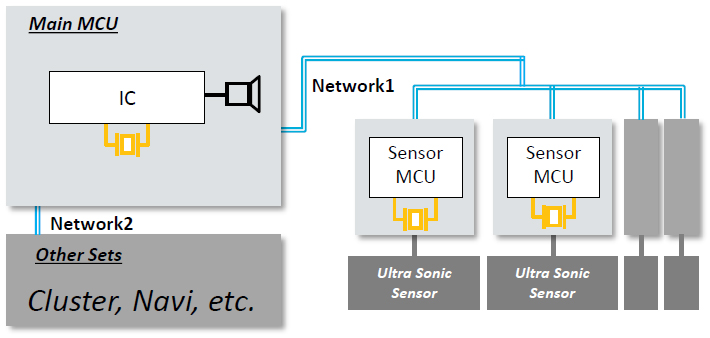

Parking Assist System

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator (Standard Tol.)	CSTCR-G-B series (4MHz to 7.99MHz) CSTNE-G-A series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz)		Frequency Tolerance : +/-8000ppm
	Ceramic Resonator (Tight Tol.)	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)

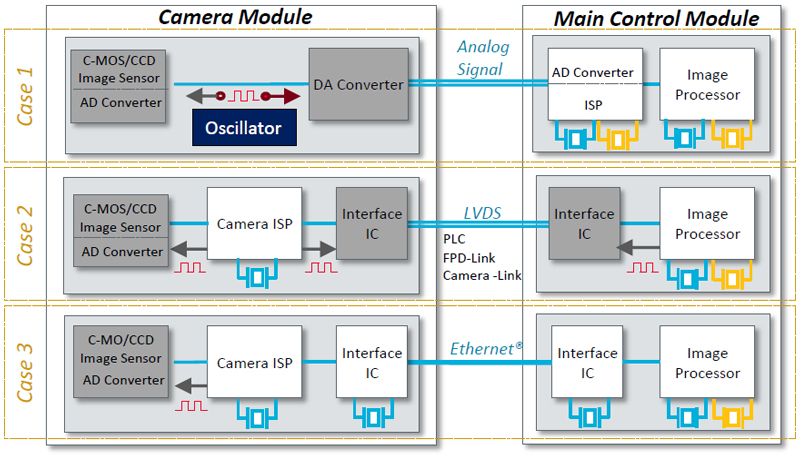

Surround View Camera System

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
	Crystal Unit	Representative P/N XRCGB25M000F3A00R0 (for Ethernet^®) XRCGB27M000F3A00R0 (for Camera ISP)		Frequency Tolerance : +/-85ppm

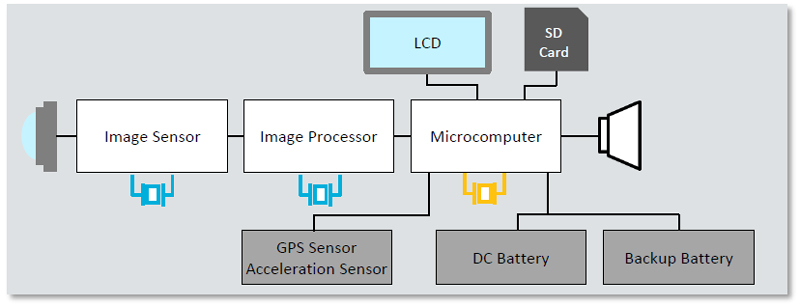

Drive Recorder

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)

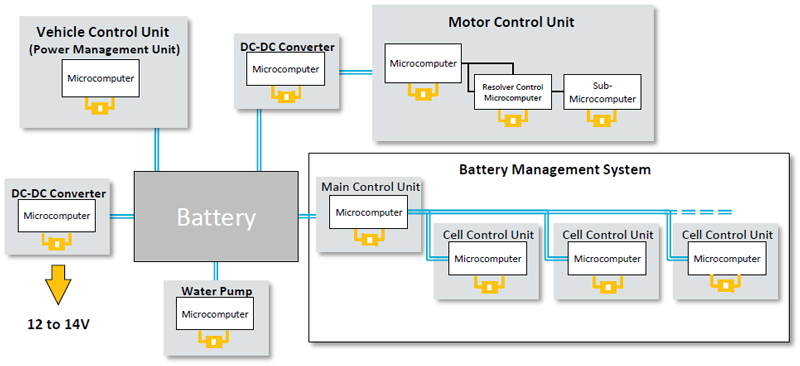

EV/HEV

Appearance	Device	Series P/N		SPEC
	Ceramic Resonator	CSTNR-G-C series (4MHz to 7.99MHz) CSTNE-G-C series (8MHz to 13.99MHz) CSTNE-V-C series (14MHz to 20MHz) CSTNE-V-T series (16MHz, 20MHz, 24MHz)		Frequency Tolerance : +/-2700ppm (C series) +/-2300ppm (T series)
