Derating 1 The test voltage of these products is less than 150% of the rated voltage in the Endurance / High Temperature Operating Life Test.

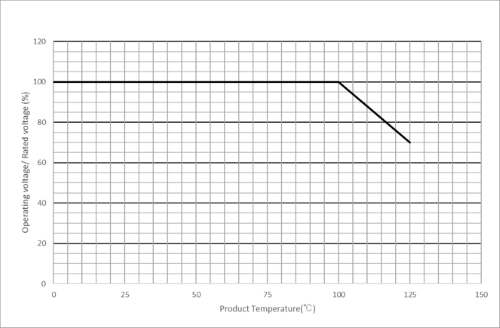

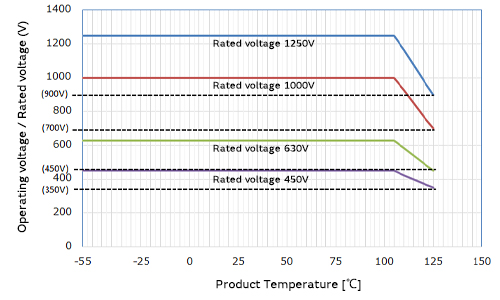

Derating 2 When the product temperature exceeds 105°C, please use this product within the voltage and temperature derated conditions in the figure below.
Derating 3 Please apply the derating curve according to the operating temperature. Please refer to detailed specifications sheet for details.
Derating 4 When the product temperature exceeds 125°C, please use this product within the voltage and temperature derated conditions in the figure below.
Derating 5 When the product temperature exceeds 150°C, please use this product within the voltage and temperature derated conditions in the figure below.

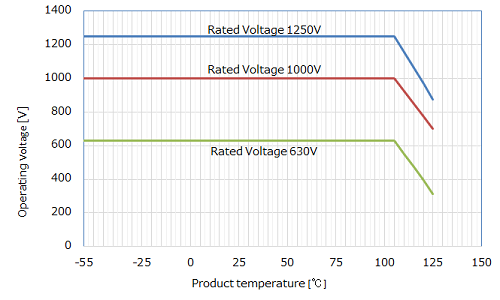

Derating 6 When the product temperature exceeds 105°C, please use this product within the voltage and temperature derated conditions in the figure below.
Derating 7 The test voltage of these products is 100% of the rated voltage in the Endurance / High Temperature Operating Life Test. Please refer to the below links for details.
Only for consumer equipment

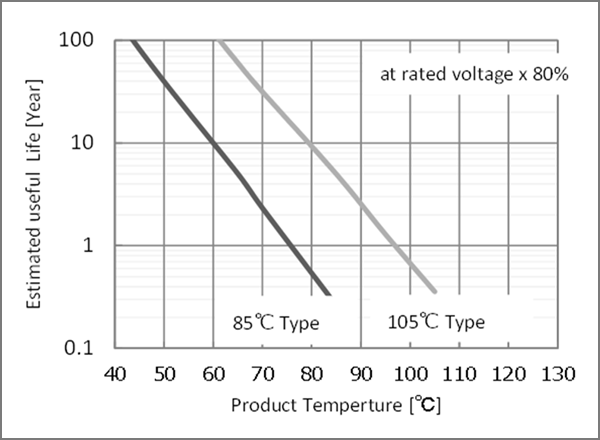

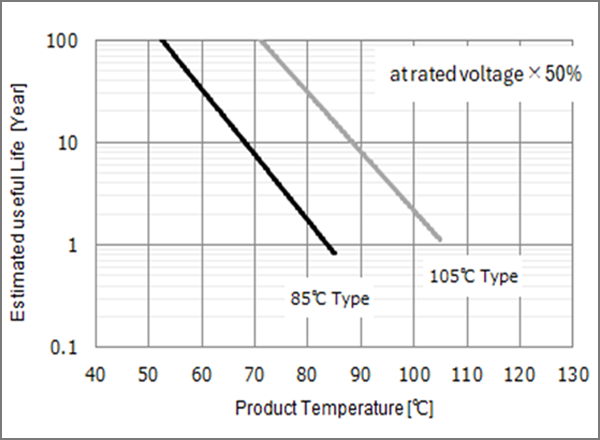

These MLCC products are designed for a wide range of applications, ensuring durability of over 5 years use. (Examples: Cellular phone, Smartphone, Tablet PC, Digital camera, Watch, Electronics dictionary, Small-scale server, IPC-9592B class1 equipment, home appliances, audio/visual equipment, communication equipment, information equipment, office equipment, and household robotics, etc.) Consumer equipment specific MLCC products are designed so that the estimated useful life can be extended longer than 5 years under the following conditions: "80% of the rated voltage or less, Maximum operating temperature -20°C or less". The estimated useful life under actual operating conditions can be approximated from the chart.
Moisture-proof treatment required To prevent the migration and degradation due to flux residue, to keep parts under low moisture condition with resin coating and the equivalent.
