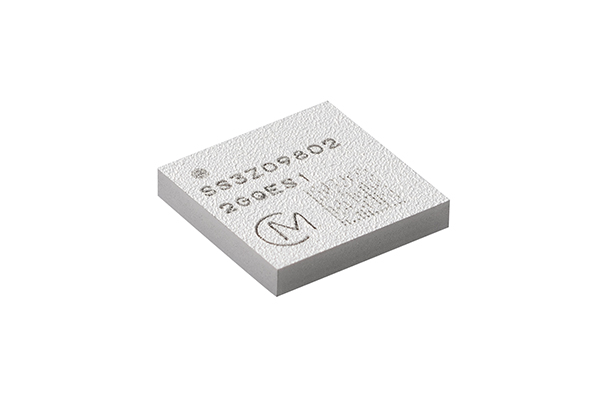

With just 4.95 mm × 4.95 mm × 0.81 (max.) mm, Murata developed a highly integrated single band GNSS module which support BDS-3 (BeiDou Navigation Satellite System 3). It is capable of tracking all global civil navigation systems (BDS, GPS, GLONASS, Galileo, QZSS and SBAS) in L1 band.
This Module offering ultra-low power design for long battery life, superior sensitivity, and high flexibility to build customized equipment.
Based upon latest GNSS SOC solution, Type 2GQ module achieves meter level position accuracy without correction data from ground-based augmentation station and higher sensitivity, greater for improved jam resistance, provide a highly robust service in complicated environment.

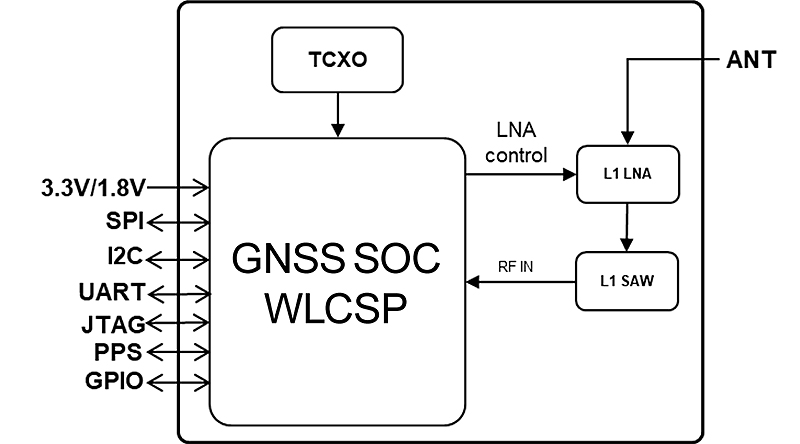

Also housed in the tiny module are incredible high performance SAW filter from Murata, temperature compensated crystal oscillator (TCXO), LNA and multiple communication interfaces including UART / SPI / I2C / PPS and virous GPIOs
The device has a single part number globally, simplifying customer supply chains.
Accommodating a wide range of temperatures, the module can operate from -40°C to 85°C.
This module can be widely used in wearable devices, GIS data acquisition, mobile phones, unmanned aerial vehicle, unmanned driving, car navigation, marine navigation, vehicle management, engineering survey, and other fields.
