UWB ModulesType 2HQ

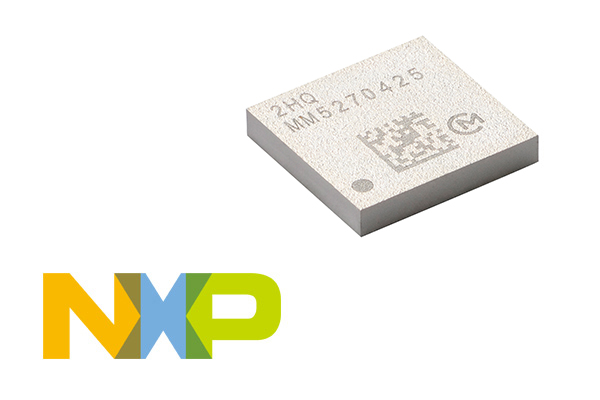

Murata Type2HQ is the ultra small UWB module which includes NXP's SR250 UWB chipset, clock, filters and peripheral components.
Ideally suited for general IoT devices including battery operated devices.

Features
Product Information
Block Diagram
Documents
Evaluation Kit
Other Related Products

Features

Main Features

UWB Radar
OCPD (On Chip Presence Detection)
Chipset : NXP Trimension^™ SR250
IEEE 802.15.4z HRP PHY compliant
UWB Channel 5,9 support
Interface : SPI
Two-Way ranging and One-Way ranging
Angle of Arrival (3D AoA or 2D AoA)
Small size : Resin molded + Conformal shielding structure
FCC/IC/TELEC Reference Certified (Planning)
FiRa compliant

Product Information

Item	Explanation
Part Number	LBUA0ZZ2HQ
Grade	Consumer
Frequency	UWB Ch 5 & 9
Frequency MHz (min/max) UWB	6240/8240
Chipset	NXP Trimension^™ SR250
Antenna	External
RF Conn / Antenna	Not Included
Flash	384kB eNV memory for code and data storage allowing fast boot
Sleep Clock	Internal X'tal (32.768kHz)
System Clock	Internal X'tal (38.4MHz)
Operating Temperature Range	−30 to 85
Mounting Type	SMT
Package	LGA
Dimension	5.9 × 5.7 × 1.05 (max) mm
Supply Voltage (Vdc)	1.8V for VDDIO or 1.2V for VDDIO 3.3V for VBAT
Supply Voltage min	1.62V for VDDIO (1.8V) or 1.14V for VDDIO (1.2V) 2.5V for VBAT
Supply Voltage max	1.98V for VDDIO (1.8V) or 1.26V for VDDIO (1.2V) 5V for VBAT
Host Interface	SPI
FCC/ISED/MIC (Japan) Certified	Planning
ETSI report	Planning

Block Diagram

Documents

如果您需要产品目录或技术数据，请选中复选框并从下面的下载按钮下载。

移动到下载按钮

Document Name	File type	Last Update	产看全部
Module Product Brief	PDF	09/12/2024

下载

Related material of environment

Planning

Evaluation Kit

Item	Explanation
Product P/N	LBUA0ZZ2HQ-EVK

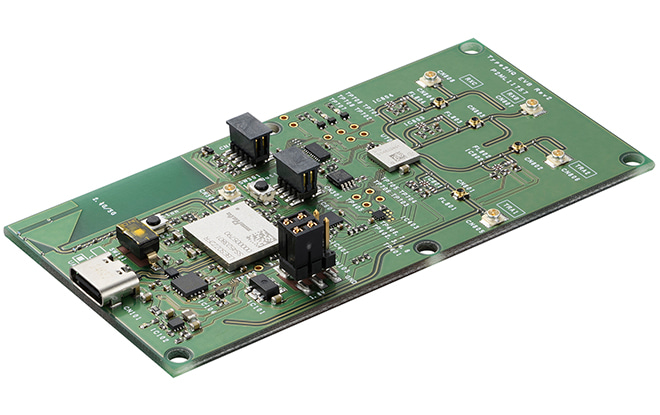

Content	Murata UWB module Type2HQ evaluation board. Type2HQ and Type2FR (NXP RW612), USB-UART conversion IC are on this EVB. Power supplied via USB cable, and from COM port of PC, Type-2HQ can be controlled through Type2FR (NXP RW612).
Dimension	90 × 45 × 11.6 (mm)
