Wi-Fi® + Bluetooth® ModulesType 2FR

Order Number ​LBES0ZZ2FR

  • Under Development
  • Recommended
  • New
Read more

Overview

Hostless Wi-Fi® 6 + Bluetooth® LE 5.3/802.15.4 Tri-Radio Module
  • 2.4GHz & 5GHz Wi-Fi® + Bluetooth® LE 802.15.4 Module
  • Chipset: NXP RW612
  • Processor: Arm® Cortex® -M33
  • FCC/IC Certification Test Undergoing
High Performance Capabilities for Internet of Things
  • For smart homes, enterprise and industrial automation, smart accessories, and smart energy
  • Integrated security features
  • Rich peripheral interfaces
  • Small dimension
  • MCUXpresso/FreeRTOS

Description

Type 2FR/2FP is a family of small and highly integrated multi-radio modules with built-in high-performance MCU with advanced security features for connected smart devices in smart homes, enterprise and industrial automation, smart accessories, and smart energy. It supports the latest Matter smart home connectivity protocol.

Specs

Documents

Products Related Files

如果您需要产品目录或技术数据,请选中复选框并从下面的下载按钮下载。

可左右滑动屏幕 请使用横屏浏览
Type File Name File size Last Update
Product Brief Type2fr-2fp-product-brief.pdf PDF: 861KB -

Software

Software
  • NXP Github: MCUXpresso; RW61x SDK software; Matter software
  • Murata's Community Forum

Block Diagram

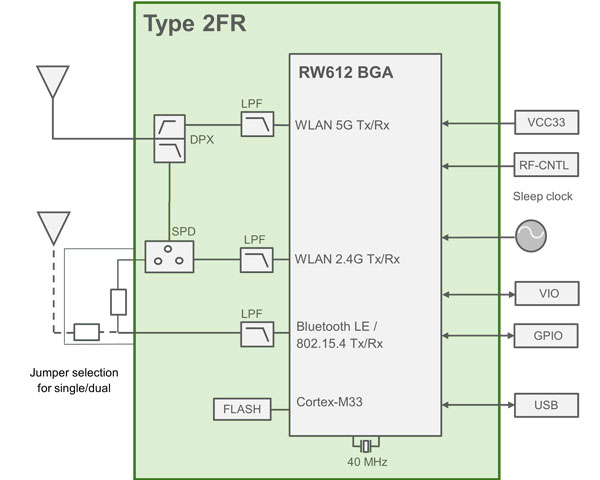

Block Diagram : Type 2FR-2FP

Eval Tool

Evaluation Tool

Murata 2FR EVK

View of 2FR Module

Purchase

Order Number LBES0ZZ2FR
Sample Part Number LBES0ZZ2FR-SMP
Production Part Number LBES0ZZ2FR-580
Development Kit Part Number LBES0ZZ2FR-EVK
Purchase
Before MP
Please contact Murata sales for detail.
After MP
Distributor : Mouser, Digi-key, Avnet, Arrow, Future Electronics, EBV, Premier Farnell, Avnet EU, Arrow EU

No annual volume requirement for purchasing from distributors.

Please engage with Murata sales team and wireless team to determine if this module is suitable for your applications.

Murata reserves the right to support or not to support requests based on the corporate policy that includes export control and application restrictions, annual volume requirement or other requirements.

To expedite the qualification of your application for these modules, please submit the information through the Contact Us button on the top.

Order Increment 2,000
